Fusion Signature 2-Way Coaxial Marine Speakers 7.7in 280W

Designed by musicians and engineered by boaties

Push the boundaries of what is possible on the water! The
Fusion Signature 2-Way Coaxial Marine Speakers are
designed to provide unparalleled performance even when exposed to
the harshest marine conditions. Combining ‘CURV’ Cone composite
technology with a Silk Dome tweeter and fully sealed crossover
components, the Classic White Signature 7.7″ speaker system is an
elegant solution for premium on-water listening.

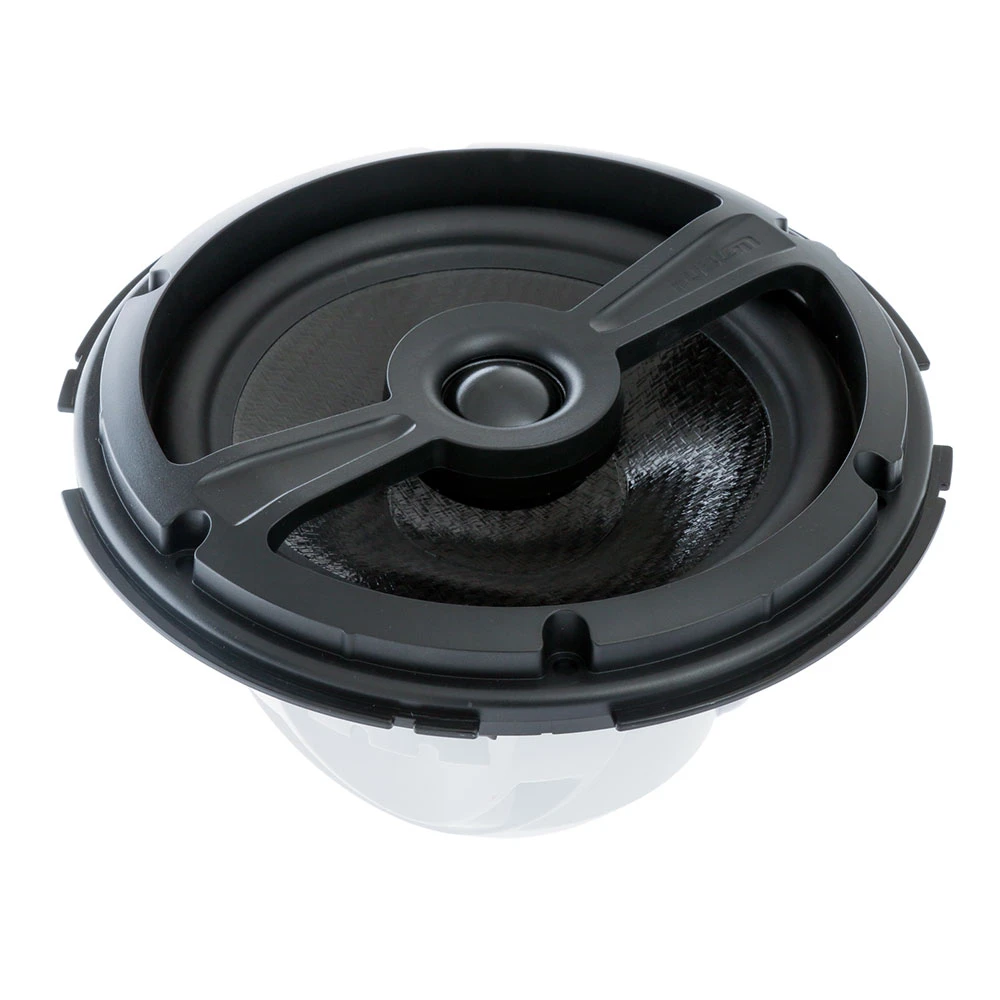

CURV Cone Technology
Incorporates CURV woven fibre composite which is heat pressed to
form a lighter and stronger cone that delivers greater sound
definition and higher output while also providing increased
protection from the marine conditions.

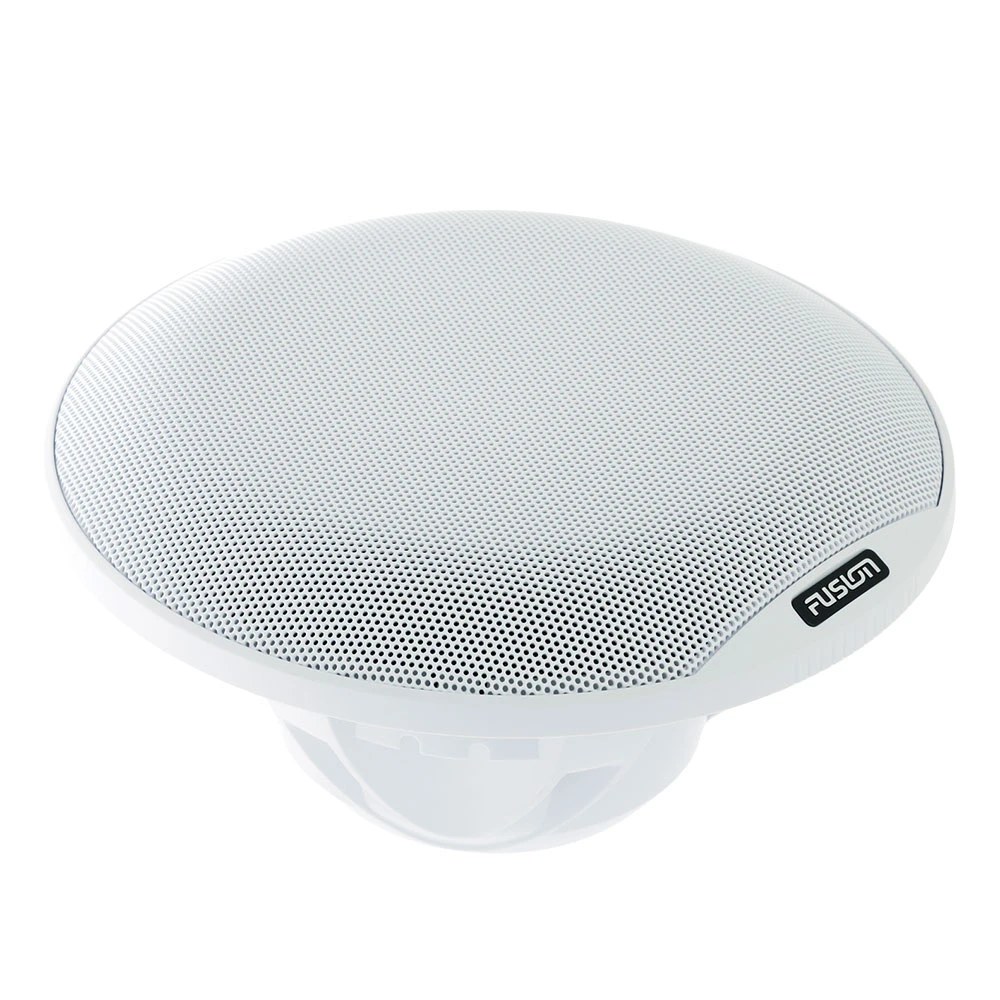

Perforated Metal Grille
This discreet, yet refined design is suitable for both indoor and
outdoor installation. The elegant Classic White finish is designed
to perfectly blend with the aesthetics of your vessel.

Fully Sealed Crossover Components
Provides full protection from the harsh marine environment, whilst
delivering an improved frequency response at the crossover point
for a detailed audio spectrum and new level of acoustic
performance.

Silk Dome Tweeter
Creates a smooth upper frequency response with increased
efficiency, producing crisp sound for unrivalled enjoyment.

Large Diameter Voice Coil
Delivering an increase in real power and efficiency, the voice coil
provides a signature sound exclusive to the 7.7″ FUSION
Speakers.

Fusion Signature 2-Way Coaxial Marine Speakers Features:

• CURV Cone Technology for greater sound definition and higher output
• Perforated Metal Grille – refined for indoor and outdoor installation
• Fully Sealed Crossover Components – full protection from harsh marine environment
• Silk Dome Tweeter creates a smooth upper frequency response with increased efficiency
• Large Diameter Voice Coil
• Colour: Classic White
• Designed to comply with ISO12216

Fusion Signature 2-Way Coaxial Marine Speakers Specifications:

• Product code: SG-F772W
• Configuration: Coaxial
• Speaker size: 7.7″
• Peak power: 280 Watts
• RMS power rating: 100 Watts
• Efficiency (1W/1M): 91 db
• Frequency response: 60 Hz – 22 kHz
• Nominal impedance: 4 Ohms
• Recommended amplifier power (RMS): 25 – 120 W/Ch
• Tweeter type: Silk Dome
• Cone material: CURV
• Voice coil diameter: 1.4”
• Water and dust resistance (IP Rating): IP65
• Speaker dimensions: Length x Height x Depth (Basket) Ø 220mm x 82.5mm [Ø 8-5/8″ x 3-1/4″]
• Mounting diameter clearance: 156mm [6-1/8″]
• Mounting depth clearance: 86mm [3-3/8″]
