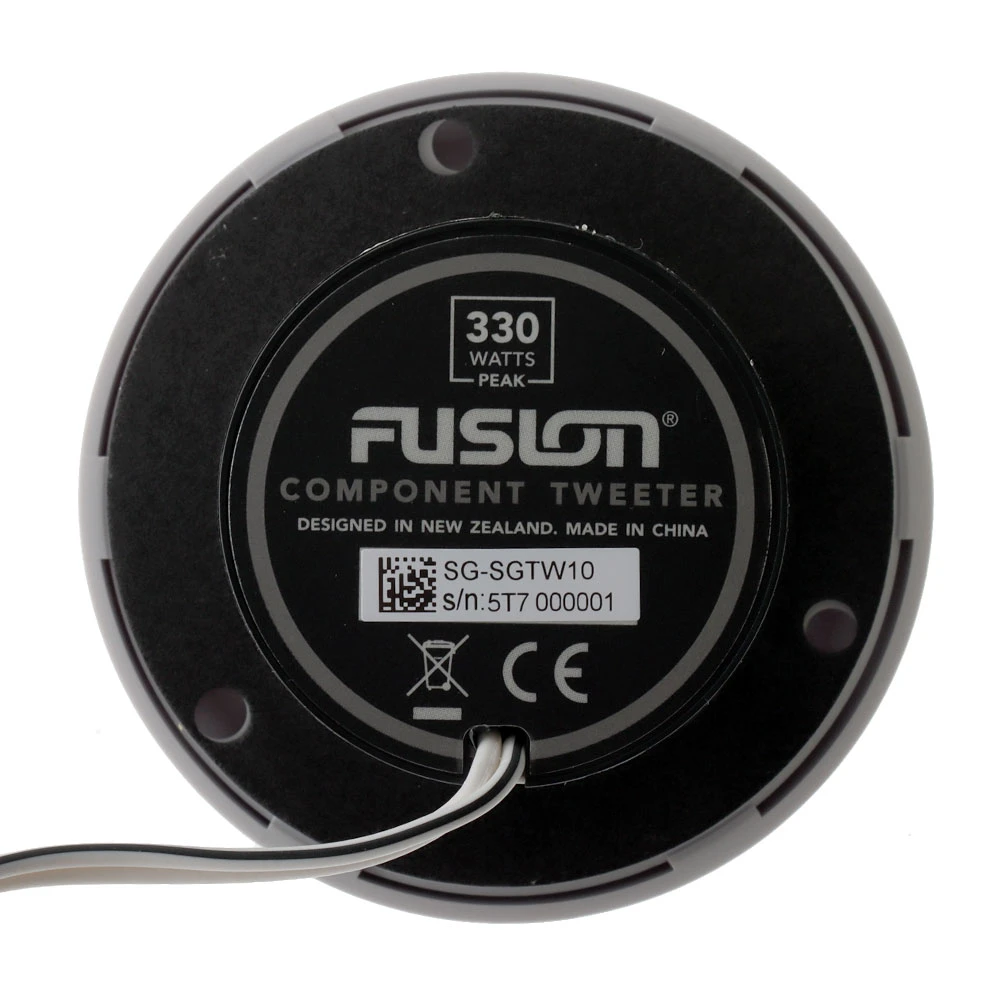

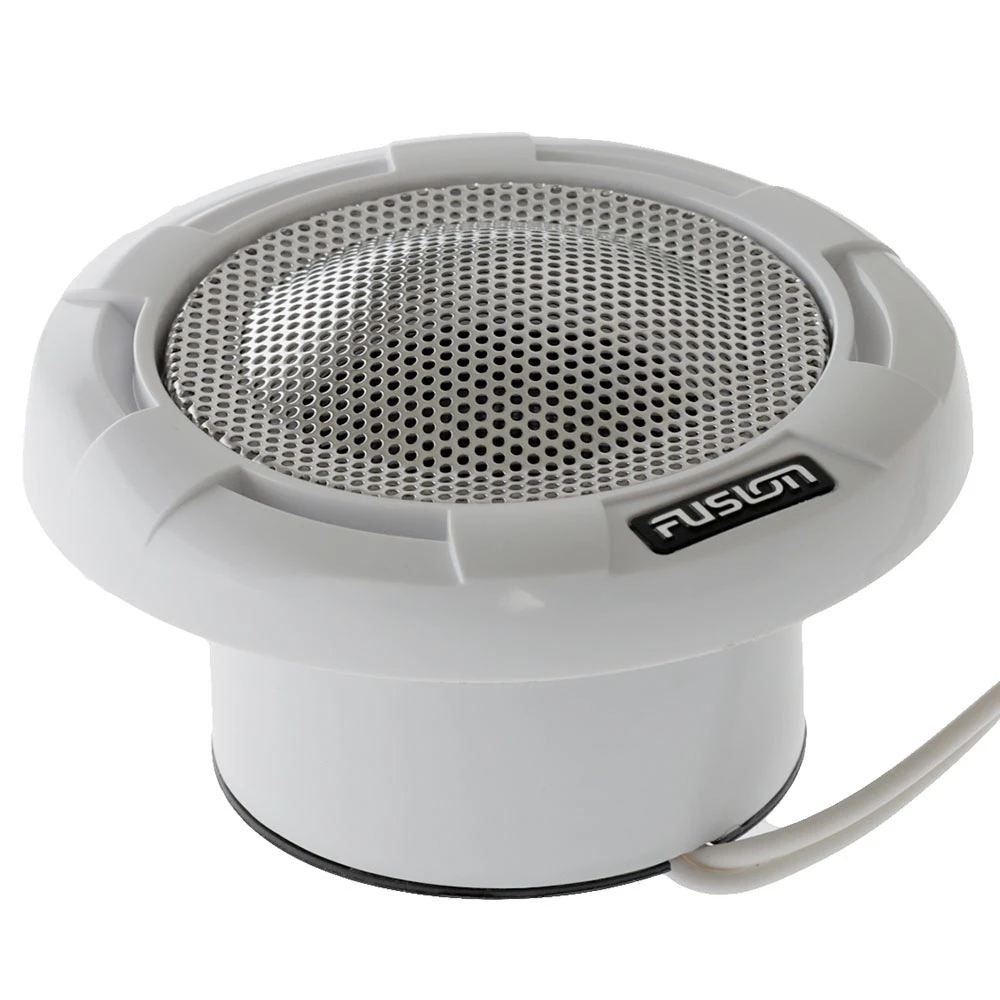

Fusion SG-TW10 Signature Series Component Tweeters 330W

Optimised for the best marine experience

Gone are the days of your on-board audio being compromised by
limited speaker placement options and engine noise! It’s often
difficult to find the space for optimal speaker placement, which
results in installations where speakers are mounted low, close to
deck height – limiting the amount of high frequency audio that can
be heard when standing.

Cue the compact Fusion SG-TW10 Signature Series Component
Tweeters, to restore the high frequencies for an audible
improvement in sound quality on board. Install the compact tweeters
in higher locations such as the helm station, dash or pilothouse
window/windscreen support frames to enjoy enhanced audio quality on
board.

Each tweeter produces an impressive 330 watts peak power with a 1″
voice coil, neodymium pot magnet system and aluminum tweeter dome
for quality high frequency detail in your music. The perfect
complement for Fusion’s Signature Series speakers and DSP-enabled
stereos, like the Apollo Series, these tweeters are designed to
enhance the audio reproduction for a truly spectacular musical
experience on board.

Add Another Dimension to Your Music
Bring the high frequency audio delivery back to ear level to add
another dimension to your on-board audio. There’s now no need to
compromise on sound quality with speaker placement or engine
noise!

Compact Performance
Working in unison, the 1″ voice coil, neodymium pot magnet system,
aluminium tweeter dome and an impressive 330 watts peak power
produce quality high frequency detail, all from a compact form
factor.

The Perfect Complement
Designed and optimised to perfectly complement your Signature
Series speakers, these tweeters will enhance the audio reproduction
when integrated with the Signature Series and Fusion DSP-enabled
stereos. A class D Stereo or amplifier that supports a minimum of 2
Ohms impedance per channel is required.

IP65 Weatherproof
Perfect for installation both indoors and outdoors, you don’t need
to worry about your tweeters not lasting on board, with an IP65
rating for protection against water and dust ingress from the front
face.

Flush Mount with a Low Profile
Quick, easy, versatile and cost-effective to install, these compact
tweeters also feature a low profile to reduce the risk of damage
from people or objects passing by.

Fusion SG-TW10 Signature Series Component Tweeters
Features:

• High frequency audio delivery detail
• Designed to enhance the audio reproduction for a truly
  spectacular musical experience on board
• 1″ voice coil, neodymium pot magnet system, aluminium tweeter
  dome
• Impressive 330 watts peak power produce quality high frequency
  detail
• Designed and optimised to perfectly complement your Signature
  Series speakers
• IP65 rating for protection against water and dust ingress from
  the front face.

Fusion SG-TW10 Signature Series Component Tweeters
Specifications

• Peak Power: 330 Watts
• RMS Power Rating: 60 Watts
• Efficiency (1W/1M): 91 dB
• Frequency Response: 3 kHz – 20 kHz
• Impedance: 4 Ohms nominal
• Impedance when connected to a Signature Series speaker: 2 Ohms
  nominal
• Voice Coil Diameter: 1″
• Tweeter Type: Aluminium Hard Dome
• Mounting Diameter Clearance: 51mm (2″)
• Mounting Depth Clearance: 31mm (1-1/4″)
• Tweeter Depth: 28.4mm (1-1/8″)
• Colour: Sports White
• Warranty: 3 years

What’s in the box:

• 2 Tweeters
• 6 Phillips stainless steel, 5.5 mm x 25.4 mm (6 gauge x 1 in.) mounting screws
• 4 Piggy-back spade terminals
• 2 Bezels
