Fusion SG-S10W Classic Marine Subwoofer 10in 450W White

High performance marine-rated subwoofer

A defined low-frequency bass can mean the difference between a good
audio system and a truly memorable entertainment experience.
Introducing the Fusion SG-S10W Classic Marine
Subwoofer – a carefully balanced blend of engineering
brilliance and Fusion performance. Add some depth to your music
without worrying about your speakers being damaged in the marine
and out door environment.

Featuring a 10-inch high tensile Fibreglass-paper composite cone
driver that produces a massive 450-watts max output, the Signature
Series Subwoofer is finished with an elegant and discretely styled
perforated metal grille, creating low-frequency vibes that are easy
on the ears and the eyes. And what’s more its water-resistant
design complies with ASTM standards for UV stability and salt/fog
resistance, so your Fusion SG-S10W Classic Marine
Subwoofer will pump out a full-bodied and accurate bass
even after prolonged exposure to the elements.

IP65 Water-resistant design
Designed and engineered to IP65 water-resistant certification, so
you can be assured it was made to withstand the marine
environment.

450-watt max power
High Power yet stunningly defined, the Signature Series Subwoofer
takes low-frequency resonance to depths previously uncharted.

Fibreglass-paper composite cone
Provides excellent self-damping, resolution and bass reproduction,
for defined low frequency acoustics.

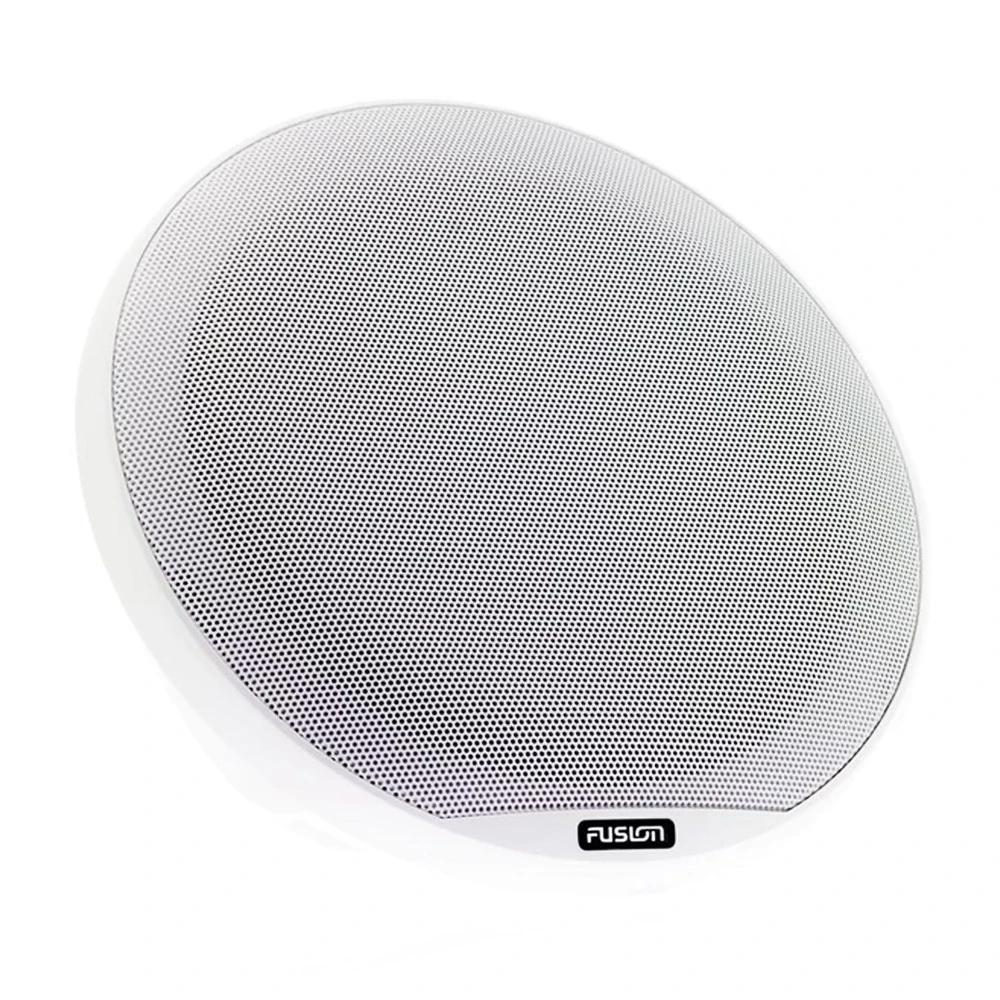

Perforated Metal Grille
An elegant classic white finish, designed to perfectly blend with
the surroundings of your vessel. This discreet, yet refined design
is suitable for internal or external installation.

Large Diameter Voice Coil
Producing an increase in real power and efficiency, the voice coil
provides a signature sound and wave rippling bass.

Fusion SG-S10W Classic Marine Subwoofer
Features:

• True marine design
• IP65 Water-resistant design
• 450-watt max power
• Fibreglass-paper composite cone
• Perforated Metal Grille
• Large Diameter Voice Coil

Fusion SG-S10W Classic Marine Subwoofer
Specifications:

• Efficiency (1W/1M): 88db
• Frequency response: 30Hz-2KHz
• Impedance: 4 Ohms
• Magnet structure: 68oz
• Max power: 450W
• Product code: SG-S10W
• RMS power rating: 250W
• Voice coil diameter: 2.0in
• Mounting depth: 130mm (5-1/8”)
• Mounting diameter: 219.98mm (8-11/16”)

Fusion SG-S10W Classic Marine Subwoofer 10in 450W White
Installation Instructions

Fusion SG-S10W Classic Marine Subwoofer 10in 450W White Mounting
Template
