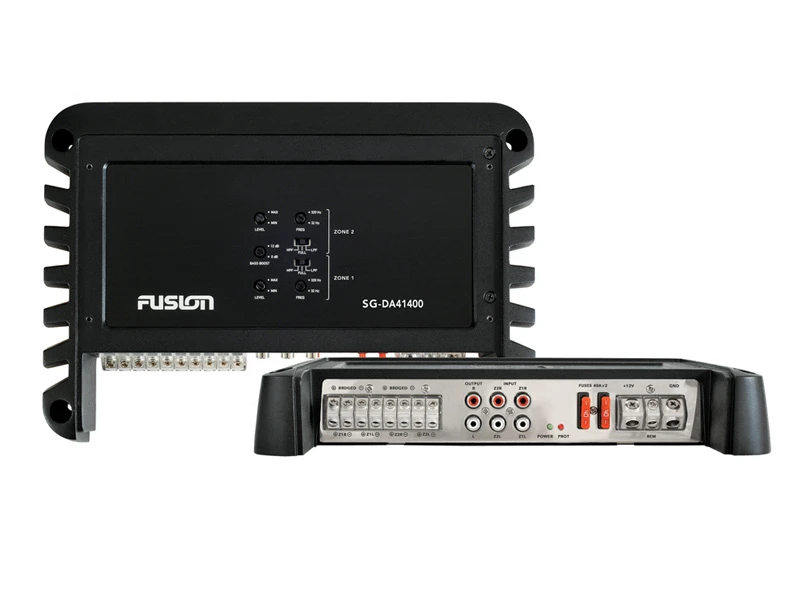

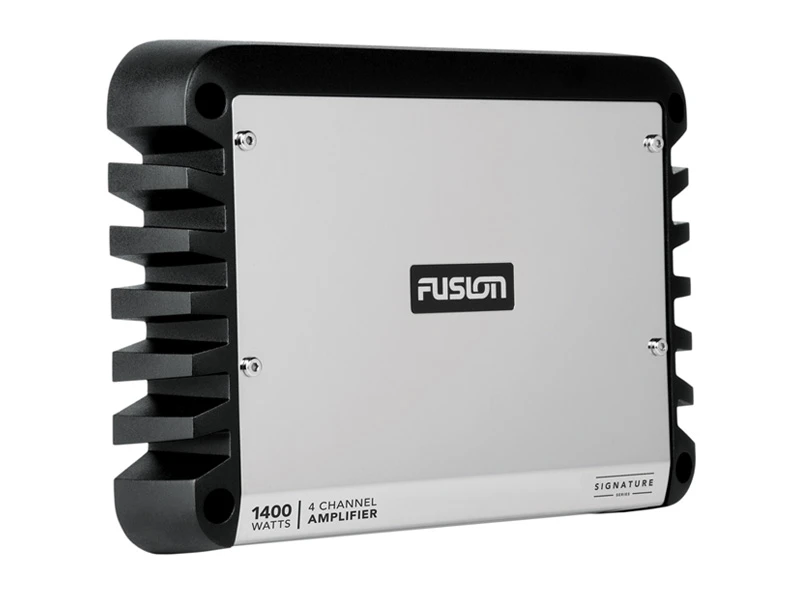

Fusion SG-DA41400 Signature Series 4-Channel Marine Amplifier 1400w

Taking your audio entertainment experience to new levels

The Fusion SG-DA41400 Signature Series 4-Channel Marine
Amplifier purpose-built for the marine environment,
boasting some of the most impressive environmental protection
available, to deliver a Signature performance on the water like
never before. The stainless steel SG-DA41400 will resist corrosion
and the incredible 1400 watt output (peak) will power four
Signature speakers, or two Signature speakers and a subwoofer with
ease. Alternatively create your own configuration with dedicated
channel and bridging options available.

The SG-DA41400 is a 5 Channel Class-D Hi-Fi Marine amplifier; the
key benefit of a Class-D amplifier is low battery drain with a high
output, making this the perfect amplifier for the marine
environment. The SG-DA41400 incorporates heat-tempered and
conformal coated PCB’s for maximum product life plus the amplifier
chassis acts as a heat sink; reducing component core temperature
and increasing efficiency.

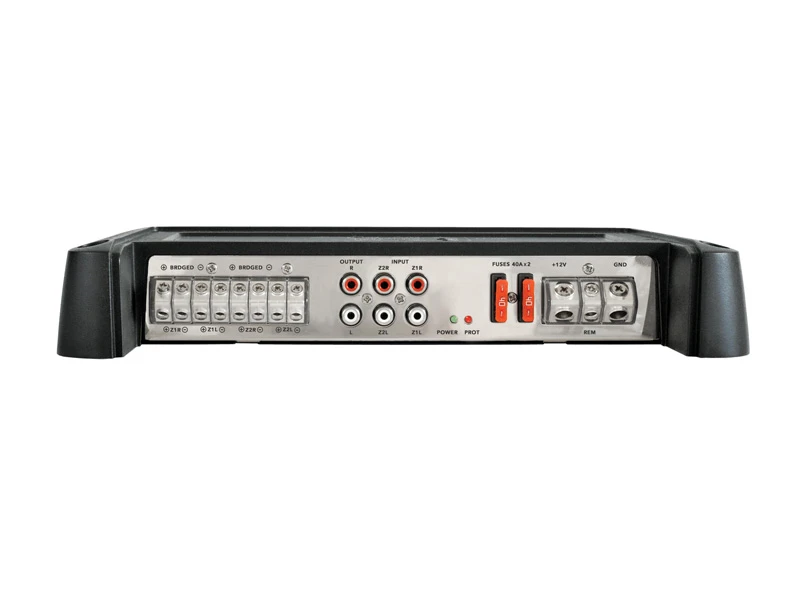

The stainless steel cover hides away the amplifier set up controls
and connections for a discrete, attractive look. Connections
include four speaker channels for sound front and rear, with
bridging ability to power subwoofers. RCA line-level inputs are
included, for easy connection to new or existing systems.

Fusion SG-DA41400 Signature Series 4-Channel Marine
Amplifier Features:

• Designed for the marine environment
• Stainless steel housing
• Incredible 1400w peak output will power 4x Signature speakers
  and a subwoofer
• Dedicated channel and bridging options
• 5-channel Class-D Hi-Fi Marine amplifier
• Low battery drain with a high output
• Heat-tempered and conformal coated PCB’s for maximum product
  life
• Stainless steel mirror install panel
• Connections include four speaker channels for sound front and
  rear, with bridging ability to power subwoofers
• RCA line-level inputs are included, for easy connection to new
  or existing systems

Fusion SG-DA41400 Signature Series 4-Channel Marine
Amplifier Specifications:

• Frequency Response: 10Hz – 100kHz
• Peak power: 1400 Watts
• Rated Power: 150 Watts RMS x 4 @ 4 Ohm 1% THD+N
• Rated Power: 220 Watts RMS x 4 @ 2 Ohm 1% THD+N
• Rated Power: 440 Watts RMS x 2 @ 4 Ohm Bridged 1%
  THD+N
• Mounting dimensions:
  Depth: 210mm [8-1/4”] Height: 50mm [2”] Length: 300mm [11-13/16”]
