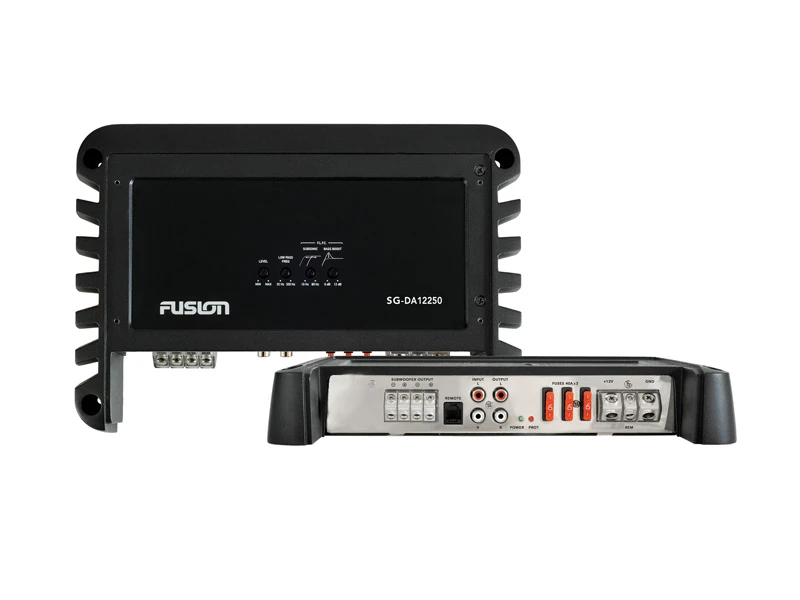

Fusion SG-DA12250 Signature Series Monoblock Marine Amplifier 2250W

Powerful amps that let your subs hit loud and proud

The Fusion SG-DA12250 Signature Series Monoblock Marine
Amplifier is purpose-built for the marine environment,
boasting some of the most impressive environmental protection
available, to deliver a Signature performance on the water like
never before. The stainless steel SG-DA12250 will resist corrosion
and the incredible 2250 Watt output (peak) is configurable for 1
Ohm impedance per channel, delivering enough power to bring your
Signature Series subwoofer components to life. Plus it delivers up
to 1100 watts RMS to your subwoofer setup, so your bass will be
heard!

The SG-DA12250 is a high efficiency 2250 Watt Monoblock amplifier
designed to ensure low current draw from the battery. This delivers
increased power to the connected subwoofer, taking your audio
entertainment experience to new levels. The SG-DA12250 Incorporates
heat-tempered and conformal coated PCB’s for maximum product life
plus the amplifier chassis acts as a heat sink; reducing component
core temperature and increasing efficiency.

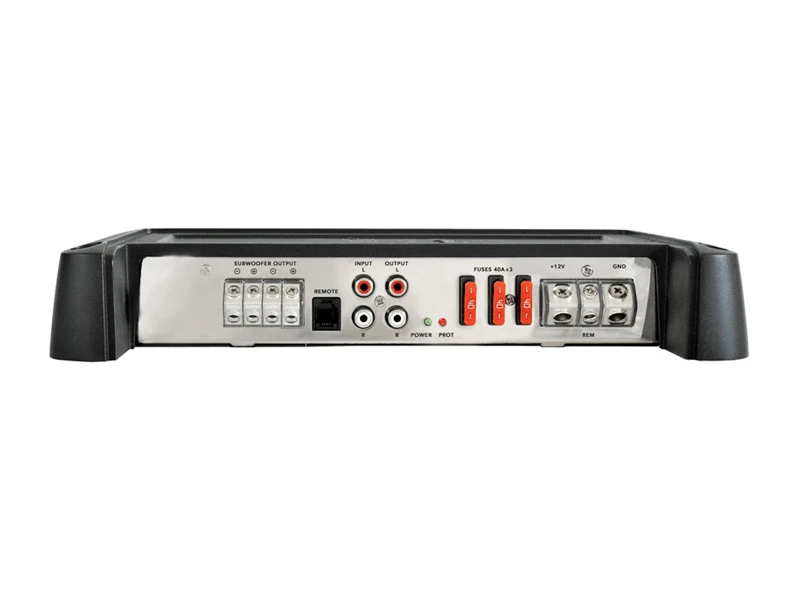

Undeniably a standout piece; the stunning stainless steel mirror
install panel offers practical confinement of all cable connections
and tuning controls. Connections include single channel output and
RCA line-level inputs for easy connection to new or existing
systems.

Fusion SG-DA12250 Signature Series Monoblock Marine
Amplifier 2250W Features:

• Designed for the marine environment
• Stainless steel housing
• Incredible 2250w peak output
• Low current draw
• Increase power to the connected subwoofer
• Heat-tempered and conformal coated PCB’s for maximum product
  life
• Stainless steel mirror install panel
• Single channel output and RCA line-level inputs for easy
  connection to new or existing systems

Fusion SG-DA12250 Signature Series Monoblock Marine
Amplifier 2250W Specifications:

• Frequency Response: 10Hz – 250kHz
• Peak power: 2250 Watts
• Rated Power: 500 Watts RMS x 1 @ 4 Ohm 1% THD+N
• Rated Power: 850 Watts RMS x 1 @ 2 Ohm 1% THD+N
• Rated Power: 1100 Watts RMS x 1 @ 1 Ohm 1% THD+N
• Mounting dimensions:
  Depth: 210mm [8-1/4”] Height: 50mm [2”] Length: 300mm [11-13/16”]
