Fusion MS-UD755 Marine Stereo Package With 2 Pairs Speakers

Complete and ready to go

Get yourself a complete marine audio setup in one purchase. The
Fusion MS-UD755 Marine Stereo Package comes with
the new MS-USD755 bluetooth-capable head unit with UNI-Dock and 2
pairs of MS-FR6021 6″ speakers. Yup, 2 pairs!

Package Includes:

• 1x Fusion MS-UD755 Marine Stereo with Internal
  UNI-Dock
• 4x Fusion MS-FR6021 6″ True Marine 2-way Waterproof Speaker
  200W

The Head Unit

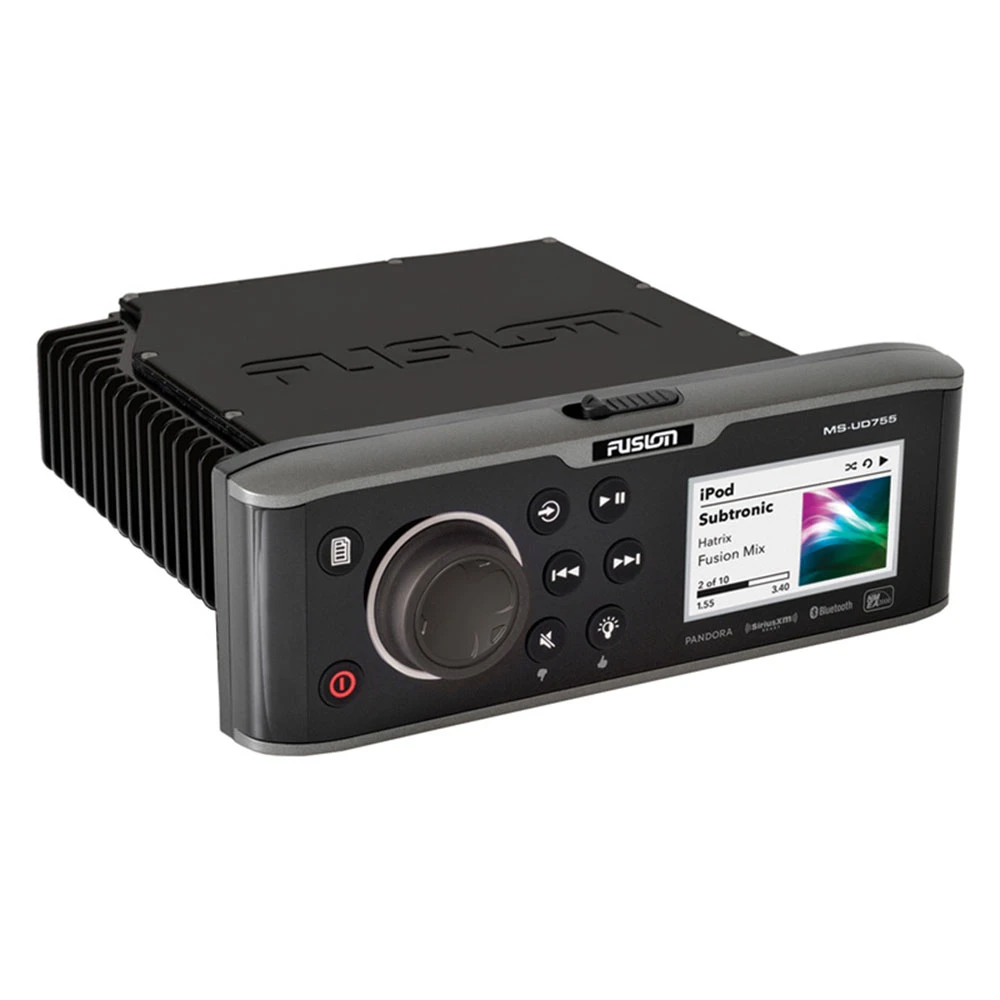

Introducing the world-class Fusion MS-UD755 Marine Stereo
with Internal UNI-Dock, the pinnacle of marine audio
engineering, which delivers unparalleled sound performance and
media integration. Featuring an internal UNI-Dock for charging,
environmental protection and playback of the latest compatible
Apple iOS, MTP Windows/Android and USB media devices, including
Bluetooth A2DP/AVRCP audio streaming capabilities, support for
advanced FUSION-Link NMEA 2000/Ethernet/Wi-Fi/Bluetooth
connectivity, the FUSION 755 Marine Entertainment System is the
next generation in the FUSION dynasty.

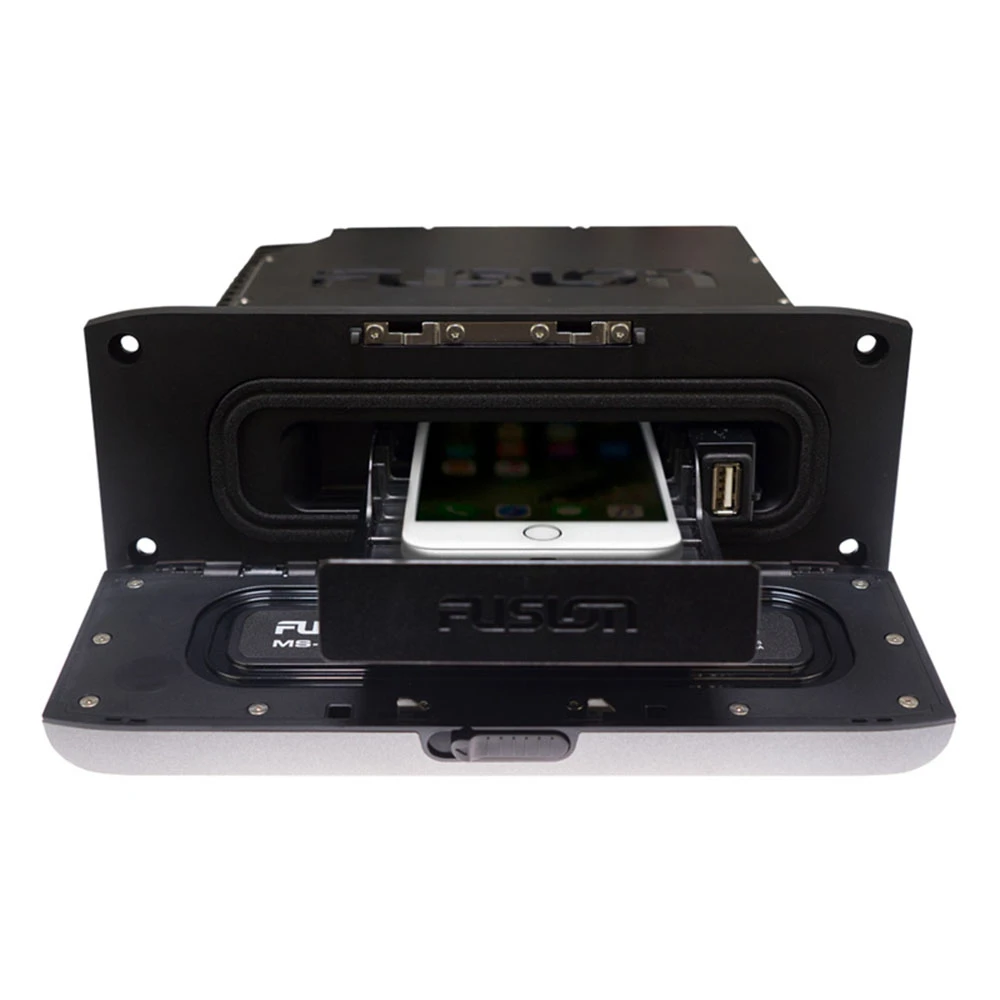

Internal UNI-Dock
Securely protect and charge your compatible Apple iOS or MTP
Android/Windows device, while enjoying your favourite
soundtrack.

FUSION-Link Control (Wired)
Enables direct stereo control from a compatible Multi-Function
Display (MFD) or NRX series wired remote control when utilising an
existing NMEA 2000 or Ethernet network.

FUSION-Link Control (Wireless)
Download the FREE Apple or Android FUSION-Link remote control app
from iTunes or Google Play to control the on-board entertainment
experience. Available over Bluetooth and Wi-Fi (Note: Wi-Fi control
requires a wireless Ethernet router).

A2DP/AVRCP Bluetooth Streaming
Stream your family’s favorite soundtrack from any compatible
device, with track, album and artist info displayed, with
navigation available from the stereo or connected device.

Apple iOS and MTP Android/Windows Media Playback
Unparalleled support of the world’s most popular media devices and
the smartest interface for browsing your music library.

Multi-Zone Technology
Four independent audio zones are available, each with advanced
localised menu controls, including zone naming.
Note: Line Out Zones require additional amplification.

Optically Bonded LCD
A colour widescreen LCD display, optically bonded to improve
durability and optimised for daylight viewing.

Dual-USB
Internal and Rear accessible USB connectors are provided, to
support all your media device requirements.

Side-Fin Cooling
Amplifier components are optimally configured for the side-fin
aluminium heat sink, producing greater thermal efficiency.

Glass Filled Composite Chassis
Structurally rigid and incredibly lightweight, this improves
environmental protection and electrically isolates the chassis for
complete reliability.

Class-D Amplifier
Provides higher RMS output than a standard stereo, for louder and
clearer audio while drawing less current.

True-Marine Designed and Engineered
Extensively tested to perform in the harsh marine environment.

The Speakers

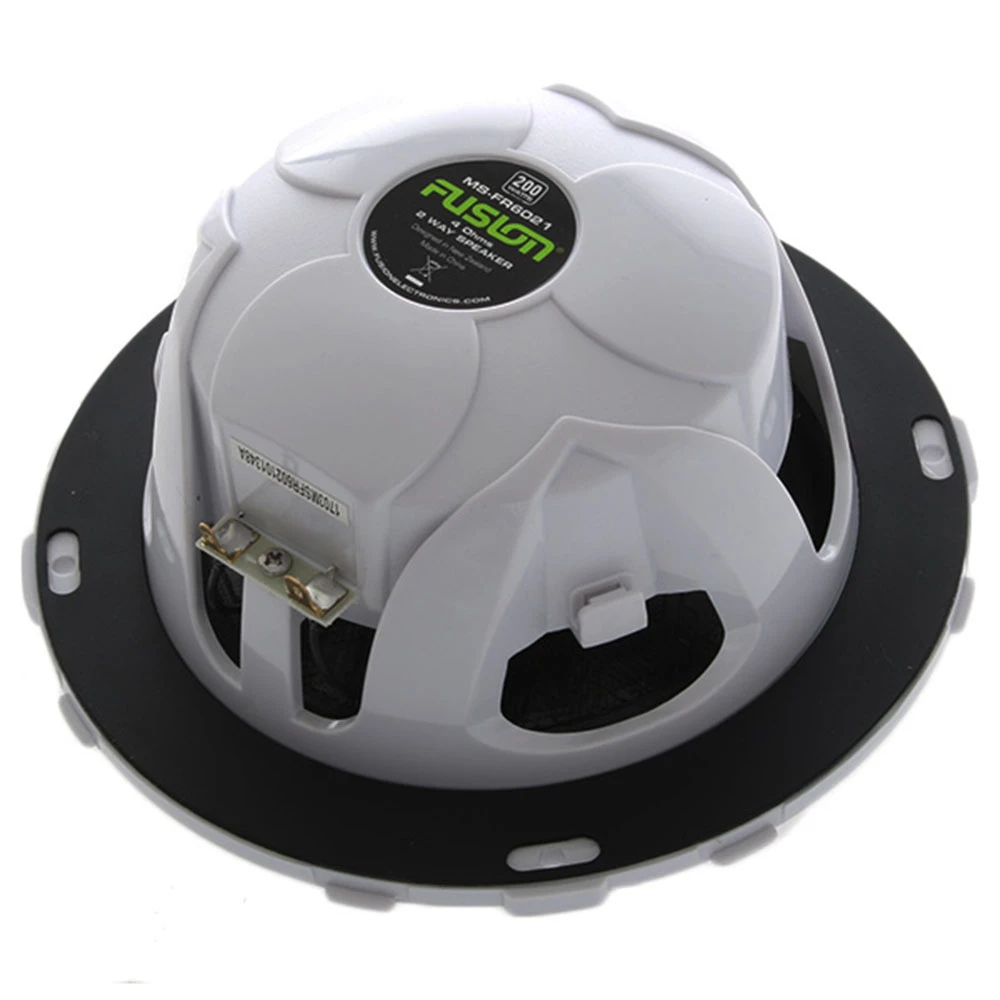

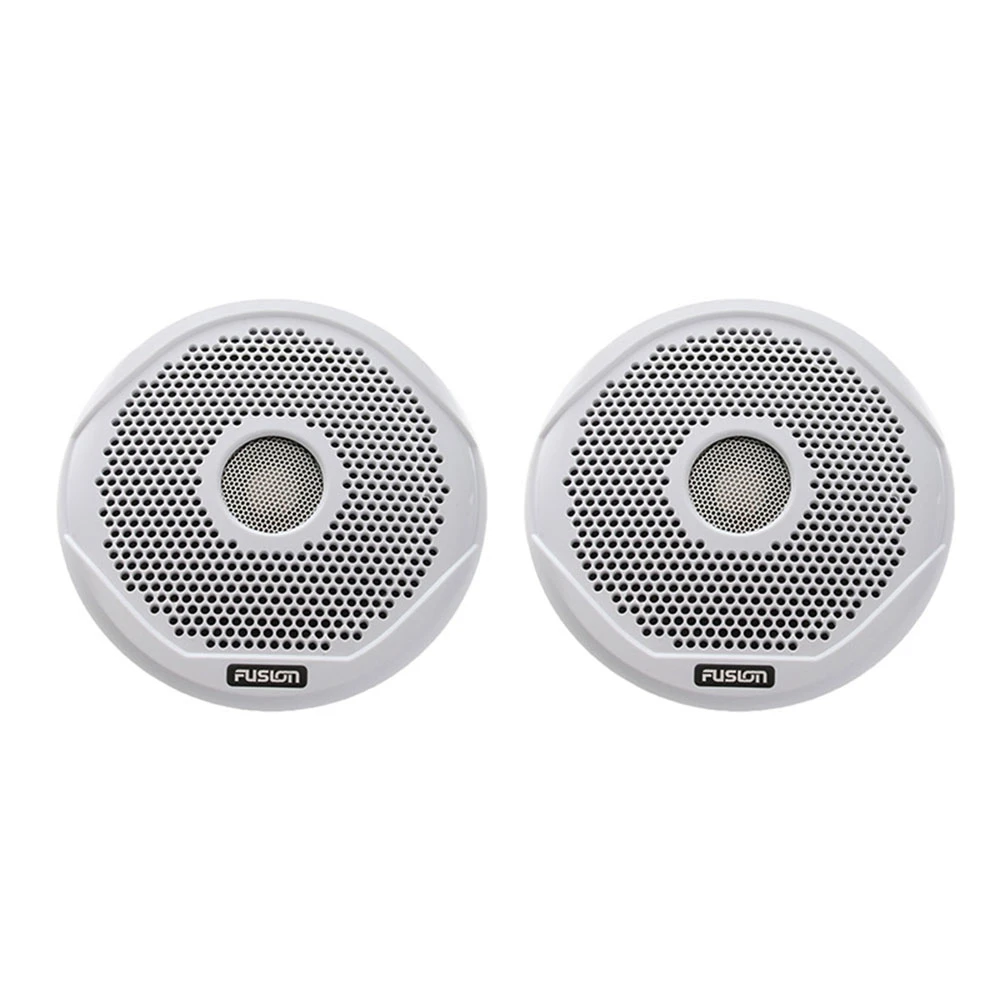

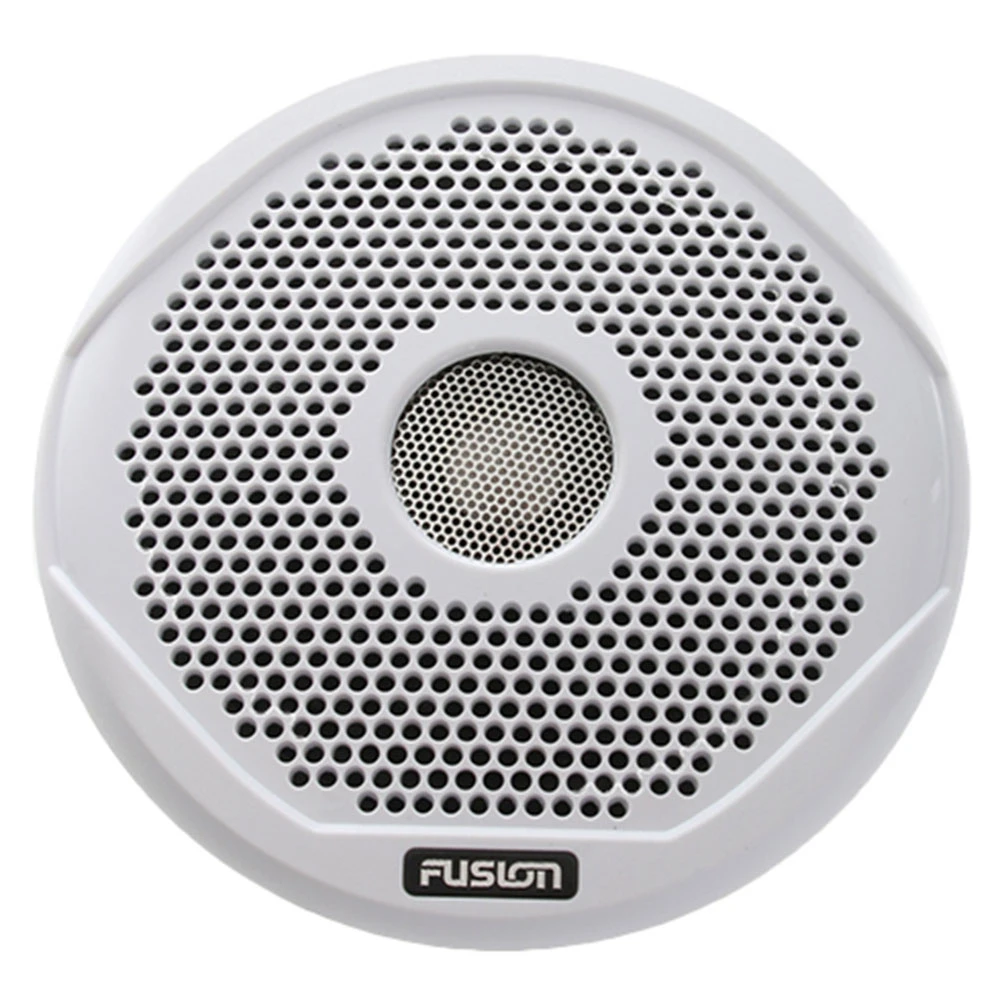

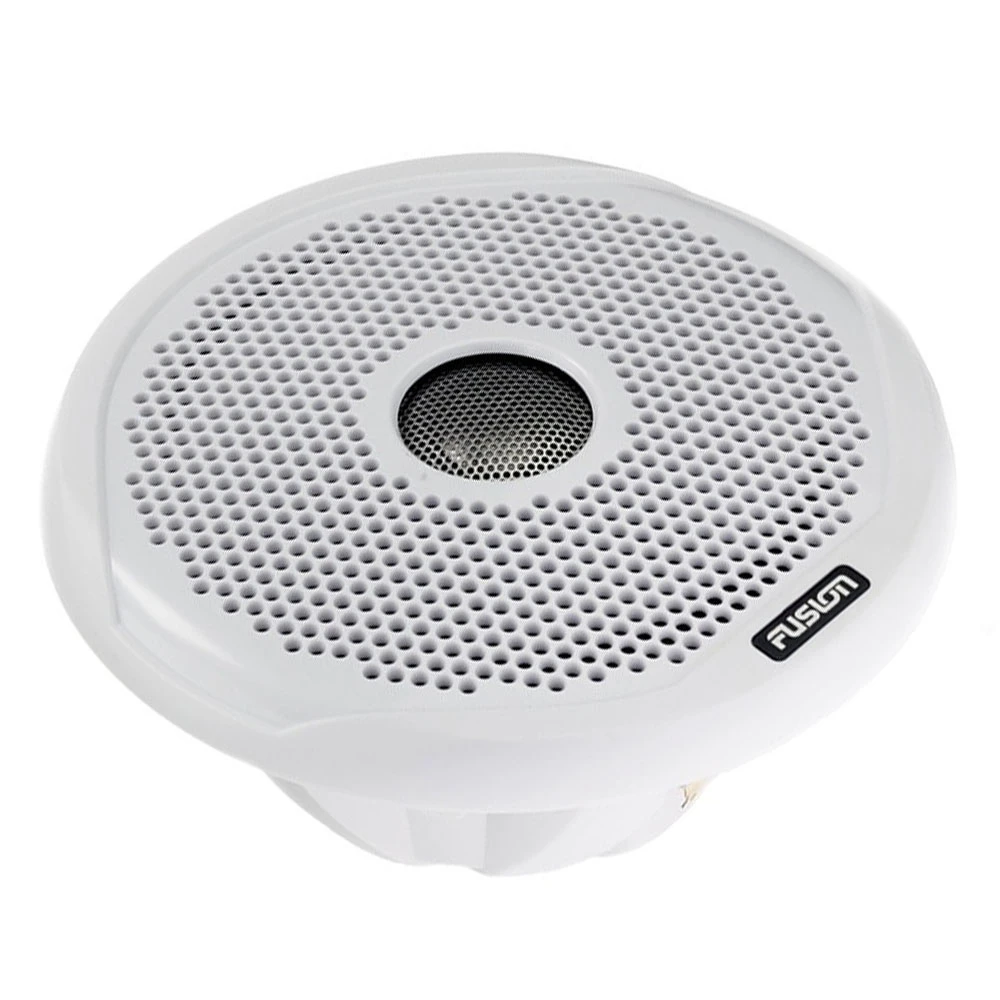

The Fusion MS-FR6021 6” True Marine 2-way Waterproof
Speakers 200W are designed and engineered specifically for
the harsh outdoors. Including design innovations and materials that
not only produce great sound, but also ensure a sustained
high-performance level during prolonged exposure to the elements.
Incorporating the latest German ‘CURV’ cone technology and titanium
tweeter dome for clear, powerful sound. ‘CURV’ technology
incorporates a woven fibre composite which is heat pressed to form
a lighter and stronger cone. This creates greater sound definition,
higher output and greater resistance to the outdoor.

Fusion MS-UD755 Marine Stereo with Internal UNI-Dock
Features:

• Internal UNI-Dock
• FUSION-Link Control (Wired)
• FUSION-Link Control (Wireless)
• A2DP/AVRCP Bluetooth Streaming
• Apple iOS and MTP Android/Windows Media Playback
• Multi-Zone Technology
• Optically Bonded LCD
• Dual-USB
• Side-Fin Cooling
• Glass Filled Composite Chassis
• Class-D Amplifier

Fusion MS-UD755 Marine Stereo with Internal UNI-Dock
Specifications:

• Tuner: AM/FM with RDS where available
• Tuner Region: USA – Australasia – Europe – Japan
• Multi-Language User Interface: English, French, German,
  Spanish, Dutch, Italian
• Amplifier: Class-D 4 x 70W (@ 2 Ω)
• Audio Zones: 4 Zones (Zone 1 & 2 powered by internal
  amplifier)
• Nameable Zones: Yes – Up to 10 characters per zone
• Line Out: 4 (1 x L + R Per Zone, all require
  amplification)
• Sub Out: 4 (1 per zone)
• Auxiliary: 2 stereo inputs
• iPod/iPhone: Made for iPod and iPhone
• Album Art: Available via USB on supported Apple, MTP and USB
  flash drive devices
• Display: 16:9 WQVGA Colour Widescreen Optically Bonded
  LCD
• NMEA 2000: NMEA 2000 Certified LEN: 1
• FUSION-Link: NMEA 2000 or Ethernet visit www.fusion-link.com
  for compatible Multi-Function Displays (MFD). WiFi Remote Control
  app for Apple and Android
• Bluetooth: A2DP Audio Streaming with AVRCP Support (Album art
  not supported) FUSION-Link remote support
• USB: 2 X USB connectors (1 x External 1 x Internal)
• MTP: Support for compatible Windows and Android media devices
  via USB
• Audio Format: MP3, M4A, FLAC
• UNI-Dock: Water resistant charging, docking and playback of
  supported iPod/iPhone/MTP/USB device (Media device subject to size
  constraints)
• Water Resistance: 360° IPx5 fully sealed chassis
• Chassis: Glass Filled Composite with Aluminum Heat
  Sink
• DAB+ Ready: MS-DAB100A is required for DAB support, only
  available where DAB and DAB+ is broadcast
• Compatible Apple Devices: iPhone 7 Plus, iPhone 7, iPhone SE,
  iPhone 6 Plus, iPhone 6s Plus, iPhone 6/6s, iPhone 5/5c/5s/4s, iPod
  touch 6th/5th gen, iPod nano 7th gen

Fusion MS-FR6021 6” True Marine 2-way Waterproof Speakers
200W Features:

• True Environment Protection – Designed to withstand the harsh
  outdoor environment and comply with International ASTM Standards
  for UV Stability (ASTM-D4329) and Salt/Fog Resistance
  (ASTM-B117)
• True Waterproof Design – Complies with IP65 Waterproof and Dust
  Standards and features a fully sealed cross-over, magnet and
  tweeter housing with waterproof cone and surrounds
• True Power Saving – High efficiency design reduces battery
  drain
• True System Flexibility – Two different pairs of speaker
  grilles are provided in the box (Ice White and Midnight Black),
  catering to the varying aesthetics of most RV’s and Campers. For
  unique styling of your FUSION speaker installation, add the
  impressive chrome MS-FR6021GS speaker grille (sold
  separately)
• Curv Cone Technology – Self reinforced polypropylene composite.
  Heat pressed to form a lighter, stronger cone – creating greater
  sound definition and higher output
• Titanium Tweeter Dome – Reproduces bright and critical detail
  for the true audiophile experience
• Water Resistant Design – Complies with International IP65 water
  and dust resistant standards. Featuring a fully sealed crossover,
  magnet and tweeter housing

Fusion MS-FR6021 6” True Marine 2-way Waterproof Speakers
200W Specifications:

• Mounting Depth: 71.5mm (2-13/16)
• Efficiency (1W/1M): 90dB
• Frequency Response: 70 – 22kHz
• Impedance: 4 Ohm
• Peak Power (Watts): 200
• Tweeter Type: Titanium Dome

Fusion MS-FR6021 6” True Marine 2-way Waterproof
Speakers 200W Mounting Template
