Fusion MS-RA70N NMEA2000 Marine Stereo Package With Speakers

Complete and ready to go

Get yourself a complete marine audio setup in one purchase! The
Fusion Marine MS-AV650 Entertainment Package comes
with the MS-RA70N Head Unit and a pair of MS-EL602 6″ speakers.
This package is perfect if you need a stereo system that can be
connected to your NMEA2000 compatible fishfinder/chartplotter
unit.

Package Includes:

• 1x Fusion MS-RA70N Marine Stereo with Bluetooth and NMEA
  2000
• 2x Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers 6in
  150W

The Head Unit

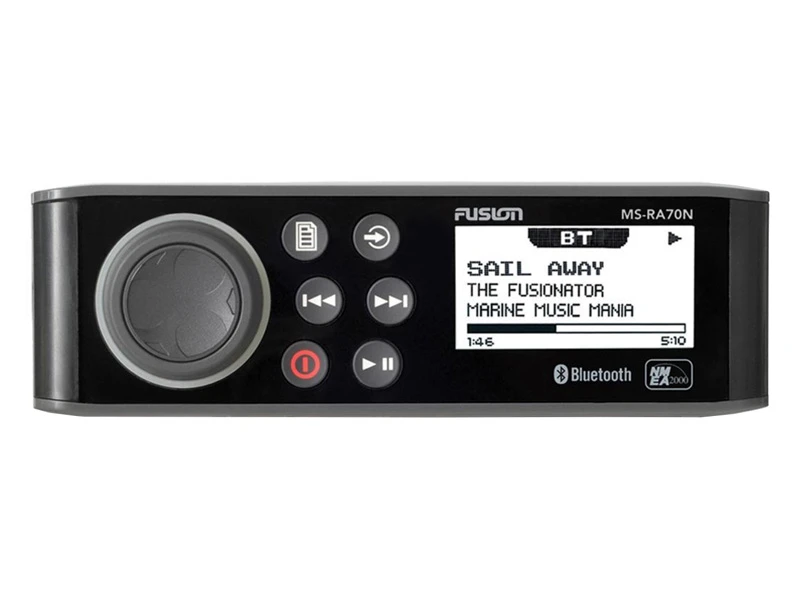

Check out the Fusion MS-RA70N Marine Stereo with Bluetooth
and NMEA 2000, Fusion’s sleekest value-packed marine
stereo, designed to deliver a quality on-water entertainment
experience by incorporating some of the latest marine technologies.
Engineered to seamlessly replace any standard DIN sized
non-marinised stereo without the need to reconfigure dash space.
Clever styling allows an installer the option of either mounting
the stereo with a conventional dash finish or an option to
integrate into a glass helm with a flush surface mount, ensuring a
high-end installation.

The MS-RA70N is designed and engineered specifically for the marine
environment, with an IPx7 front panel (when mounted correctly) to
withstand the environment like none other, perfectly paired with an
optically bonded LCD for crystal clear display on the high seas.
Listen to USB MP3 audio, connect your supported smartphone or even
relax to your local AM/FM station; the MS-RA70N delivers marine
grade entertainment to those who would normally have to resort to
installing unfriendly and rust prone car audio stereos – Rest easy,
let FUSION entertain you on the water.

Music streaming
Stream your favorite soundtrack from any compatible device with
control available from the stereo or your connected smartphone via
the FUSION-Link Bluetooth app. Simply download the free Apple or
Android FUSION-Link remote control app for Bluetooth from iTunes or
Google Play and enjoy localised zone control, source navigation,
track selection and the freedom of wireless control.

NMEA 2000
The MS-RA70N is a FUSION-Link Wired NMEA 2000 certified product and
is compatible with a range of the world’s leading Multi-Function
Displays for onscreen audio control. When pairing the MS-RA70N with
a supported Chartplotter or Fishfinder you bring your music to the
big screen, allowing you to keep an eye on the charts or the fish
while skipping tracks or adjusting the volume at the same time. In
addition to MFD control, the MS-RA70N will connect to any FUSION
MS-NRX200i remote control attached to the same powered NMEA 2000
network for localised control of the audio zones.

The Speakers

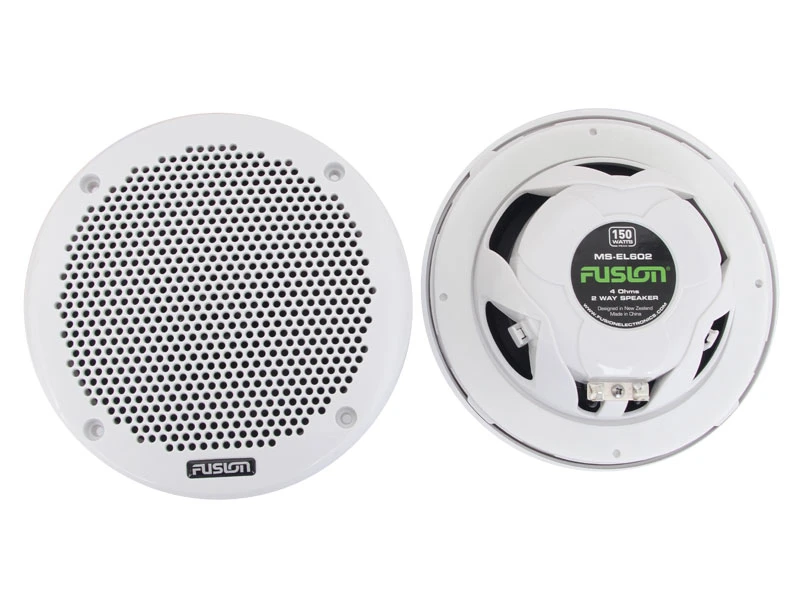

Enjoy music in your boat with the Fusion MS-EL602 Shallow
Mount Marine 2-Way Speakers. These speakers are engineered
with flush profile tweeters and a compact basket assembly. They
feature a mounting depth of only 41mm (1-5/8″) for simple and
versatile installation. The Fusion Marine 6inch 2-Way
Speakers have a water resistant design which ensures the
speakers are able to withstand exposure to the marine environment.
And with a peak power output of 150 watts, these speakers will rock
your boat for as long as you choose to ride the waves.

Fusion MS-RA70N Marine Stereo with Bluetooth and NMEA 2000
Features:

• A2DP Bluetooth Audio streaming with FUSION-Link app remote
  control available
• AM / FM Radio Tuner with support for DAB Radio (MS-DAB100A
  Module and Antenna Package)
• USB MP3 Playback with support for Apple iAP2 and Android AOA
  music
• IPx7 Waterproof front face with optically bonded LCD
• Flush or Dash mounting installation options
• FUSION-Link NMEA 2000 Ready for connection and control from any
  supported Multi-Function Display
• Multi-Zone Control (2 Zone System) Works with MS-NRX200i remote
  control when installed on a powered network (additional cabling
  required)

Fusion MS-RA70N Marine Stereo with Bluetooth and NMEA 2000
Specifications:

• Android Open Accessory (AOA): Android support is limited to
  devices which support AOA protocol, see supported device list for
  details
• Audio Format USB: MP3
• Audio Zones: 2 on board amplified zones
• Auxiliary Inputs: 1 x Stereo RCA Input (AUX)
• Bluetooth: A2DP Bluetooth Audio Streaming with AVRCP
• Chassis: Electrically isolated glass filled composite chassis
  with an aluminium side-fin heat sink with VCT
• DAB+ Ready: MS-DAB100A is required for DAB support, only
  available where DAB and DAB+ is broadcast
• Display: 128×64 Monochrome Optically Bonded LCD
• FUSION-Link Wired: Compatible with a FUSION NMEA 2000 wired
  remote control and any supported FUSION-Link MFD. A powered network
  is required for remote support
• FUSION-Link Wireless: Bluetooth remote control is available
  with the FUSION-Link remote control app available for download from
  iTunes or Google Play
• iPod/iPhone: Made for iPod and iPhone – supports IAP 2 protocol
  only
• Line Out: 1 x L+R Linked to Zone 1 (requires
  amplification)
• Multi-Language User Interface: English, French, German,
  Spanish, Dutch and Italian
• Nameable Zones: Up to 10 characters
• NMEA 2000 Certified: LEN:1
• Subwoofer Out: 1 x Sub Out Linked to Zone 1 (requires
  amplification)
• Tuner: AM/FM with RDS (where available)
• Tuner Region: USA, Australasia, Europe and Japan
• USB: 1 x USB connector at the rear of the unit, supports 1 amp
  charging
• Water Resistance: IPx7 waterproof from the front panel when
  correctly mounted. Rear of the unit is rated IPx3

Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers
Features:

• Shallow mount design – Flush profile tweeters and a compact
  basket assembly for simple installation
• mounting depth of only 41mm (1-5/8″) for simple and versatile
  installation
• Water resistant construction
• Engineered for the marine environment, able to withstand
  exposure to the elements

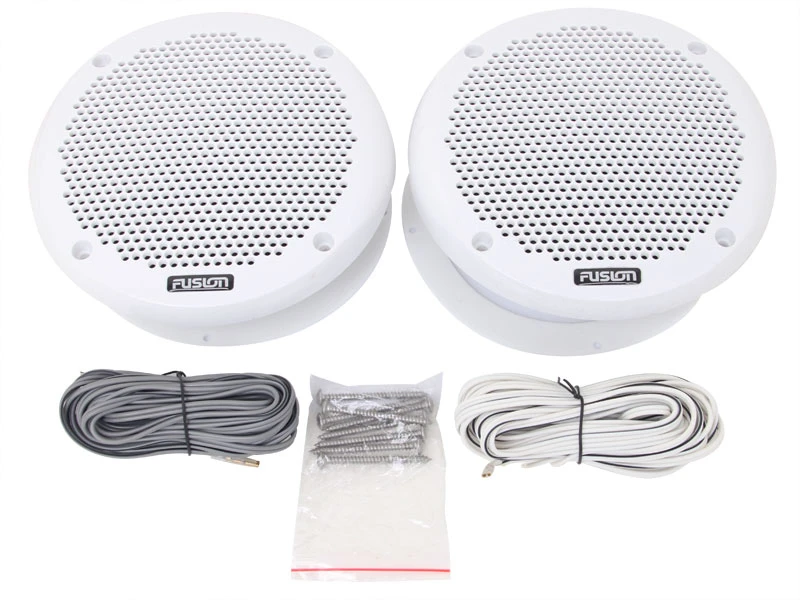

• What’s in box: 2s speakers, 2x cables, mounting screws

Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers
Specifications:

• Speaker diameter: 156mm
• Cut-out diameter: 130mm
• Mounting depth: 41mm
• Cone Material: Polypropylene
• Efficiency (1W/1M): 85dB
• Frequency Response: 60Hz – 22kHz
• Impedance: 4 Ohm
• Peak Power: 150 Watts
• Woofer Size: 6″
• Tweeter Type: PEI

Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers User
Manual

Fusion MS-EL602 Shallow Mount Marine 2-Way Speakers Mounting
Template

Note: The MS-NRX200i must be incorporated onto
a powered network, if you are planning on using the MS-RA70N and a
MS-NRX200i on a standalone network additional cabling is required
to power the network)
