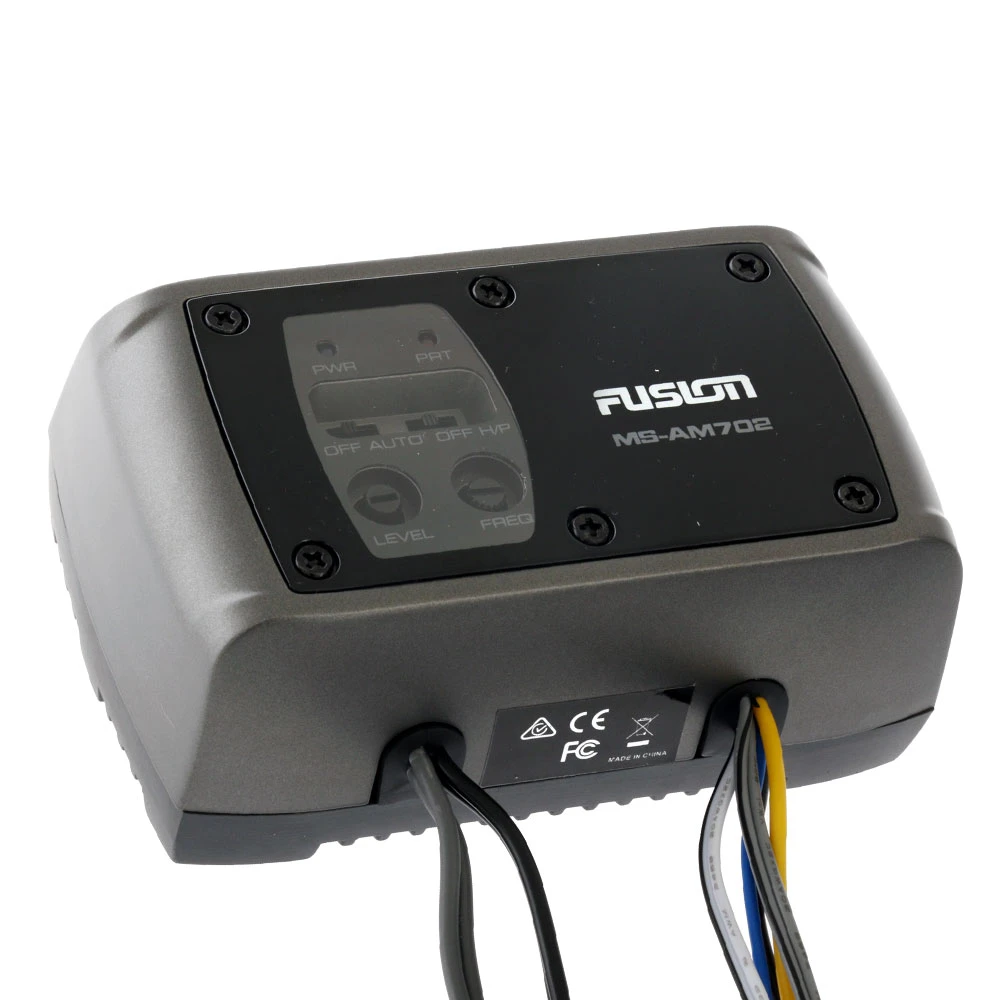

Fusion MS-AM702 Marine Amplifier 70W 2 Channel

Small in size, big in performance

The Fusion Marine Amplifier 70W 2 Channel is
designed to support Fusions multi-zone technology. This 2-channel,
140-watt zone amplifier is small, allowing for discreet
installation. When combined with the Marine Stereo Unit, it
provides the platform for a true multi-zone audio system. This
amplifier has an audio detect selectable function – the amplifier
turns on when audio is detected and goes to sleep / low power mode
when audio is not present.

Rated True-Marine, the MS-AM702 comes with an industry-leading
3-year warranty. For an affordable amplifier that is provides
premium features seen in much more expensive units, don’t miss out
on the Fusion MS-AM702 Marine Amplifier.

Fusion MS-AM702 Marine Amplifier 70W 2 Channel
Features:

• 2 Channel
• 2 Ohm Stable
• Water resistant design
• Conformal coated PCB
• Audio detect selectable function
• Selectable high pass/ full range setting
• Variable high pass filter
• Small and discrete size: 128 x 78 x 51mm

Fusion MS-AM702 Marine Amplifier 70W 2 Channel
Specifications:

• Product Specifications
  • Amplifier Class: Class-D
  • Peak Power: 140 Watts
  • Rated Power (4 Ohms): 20 Watts RMS x 2 @ 14.4V – 4 Ohms 10%
    THD
  • Rated Power (2 Ohms): 30 Watts RMS x 2 @ 2 Ohms 10%
    THD
  • Operating Voltage: 10 -16 Volts DC
  • 3 Year Warranty

• Mounting Dimensions:
  • Length: 128mm (5-1/16″)
  • Depth: 78mm (3-1/16″)
  • Height: 51mm (2″)
