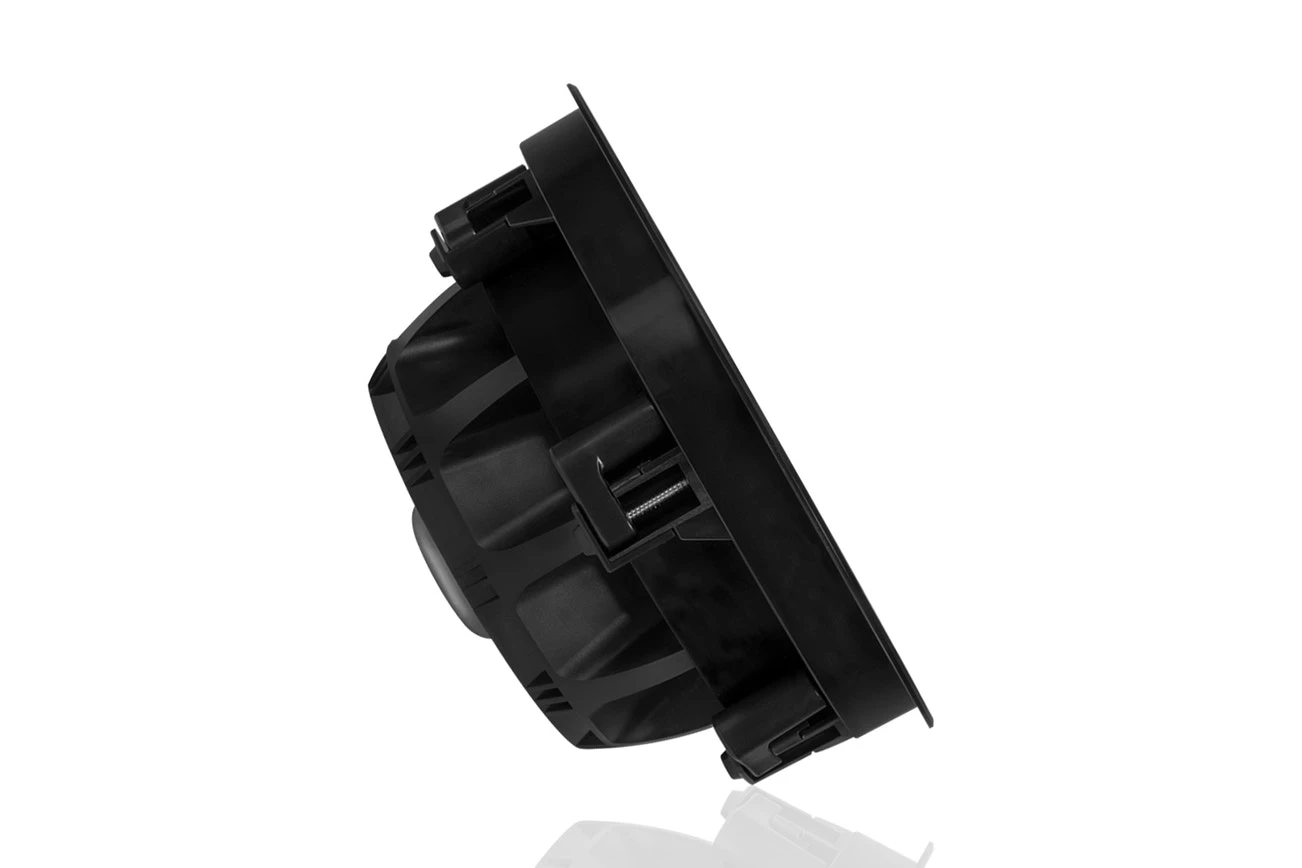

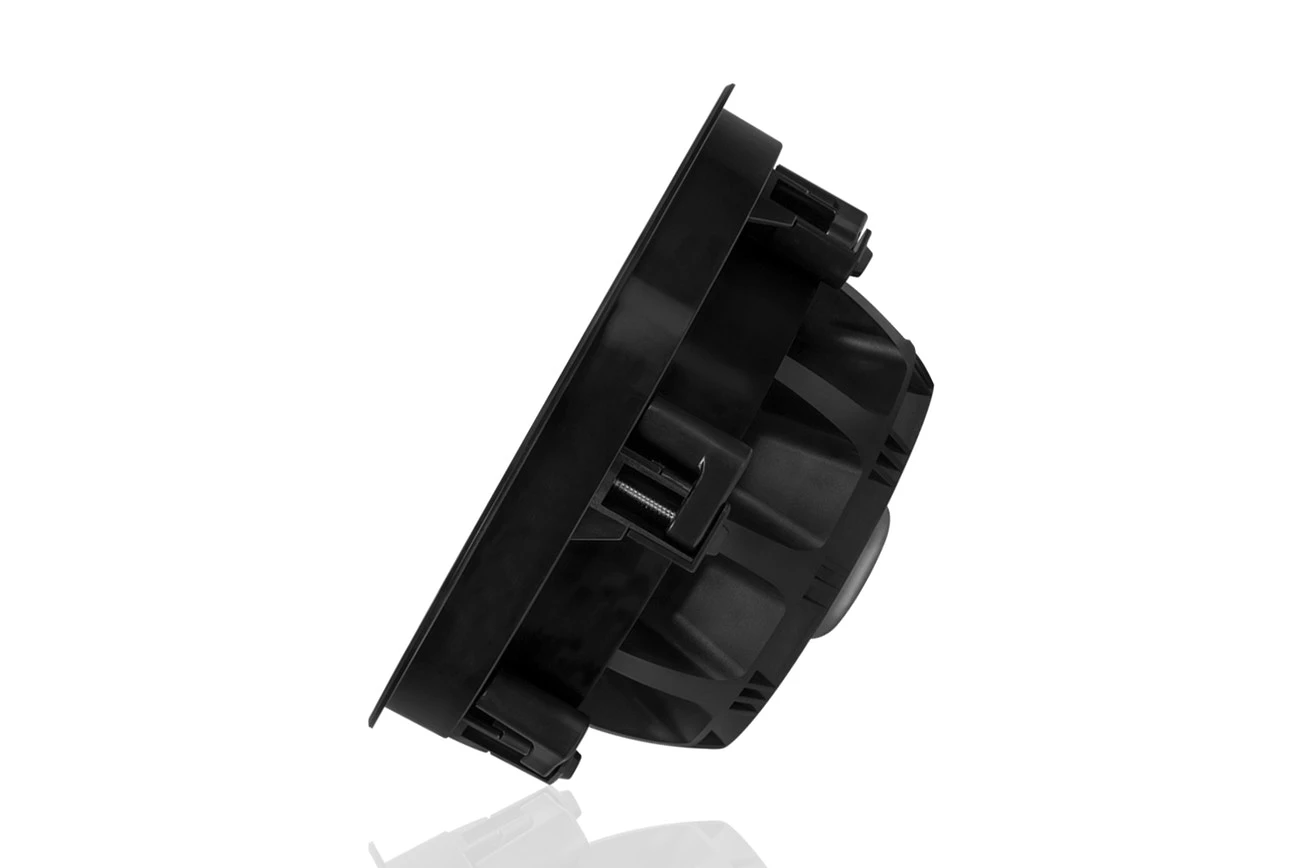

Fusion FM-S10RB Flush Mount Marine Subwoofer 10in 400W Black

Clear audio, clean aesthetics, all-class

The Fusion FM-S10RB Flush Mount Marine Subwoofer is engineered for high-quality audio reproduction with innovative design aesthetics. Featuring an intelligent mounting system for non-intrusive, easy installation, the FM Series subwoofers are designed to be flush-mounted with a mounting flange no thicker than 3mm [1/8″] for a premium, visually appealing, near-flat finish.

With an IP65 weatherproof rating, True-Marine accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your FM Series subwoofer is built to last on board season after season.

Optimised 2.1 Configuration
When connected with a pair of FM Series speakers and a 2 Ohm stereo stable Fusion Multi-Zone™ stereo with DSP, you have the option of creating a 2.1 audio zone to simplify installation and reduce system cost by adding bass without the need for an external amplifier.

Fusion FM-S10RB Flush Mount Marine Subwoofer
Features:

• Optimised 2.1 Configuration
• Quality Audio Reproduction
• Low profile, near-flat installation for a visually appealing finish, the FM
  Series will complement the aesthetics of any vessel
• Non-Intrusive Mounting System – ‘speaker
  legs’ keep the subwoofer in place without creating any screw
  holes to your vessel
• True-Marine Designed and Engineered – extensively tested to
  perform in the harsh marine environment, the FM Series carry an
  IP65 weatherproof rating along with True-Marine
  accreditation
• Designed To Comply With ISO12216: tested to international
  standards for pressure and watertightness, it recognises the FM
  Series are designed and built to the highest industry standards for
  quality and robustness

Fusion FM-S10RB Flush Mount Marine Subwoofer
Specifications:

• Subwoofer Size: 10″
• Peak Power: 400 Watts
• RMS Power Rating: 120 Watts
• Efficiency (1W/1M): 87 dB
• Frequency Response: 30 Hz – 2 kHz
• Nominal Impedance: 4 Ohms
• Recommended Amplifier Power (RMS): 40 – 300 W/Ch
• Cone / Surround Material: Polypropylene with rubber
  surround
• Mounting Diameter Clearance: 269mm [10-9/16″]
• Mounting Depth Clearance: 140mm [5-1/2″]
• Optimum Enclosure Volume (Sealed enclosure, fully filled with
  absorption material): 40L
• Operating Temperature Range: 0 to 50°C (32 to 122°F)
• Storage Temperature Range: -20 to 70°C (-4 to 158°F)
• Water and Dust Resistance (IPX rating): IP65
• Warranty: 3 years>
• Colour: Black
• Thiele Small Parameters
  Qms: 5.7
  Qes: 1.41
  Qts: 1.13
  Vas: 29.2
  Fs: 47
